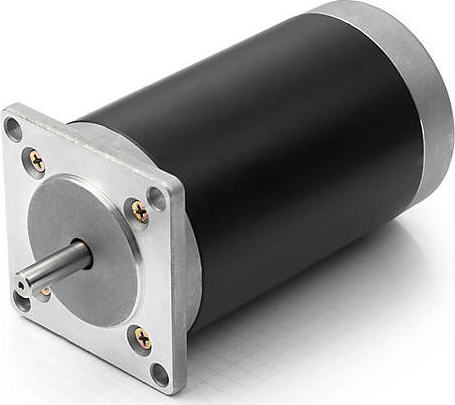

Nema 23 Bldc Motor

Place of Origin : China

Brand Name : OWO

MOQ : 5

Price : Negotiable

Packaging Details : cartons+packing foams

Delivery Time : 5-30days

Payment Terms : T/T,L/C

Model Number : OWM57BLSH1.001

Certification : CE. RoHs. IS9001

Winding connection mode : Star

Hall distribution angle : 120 degree electrical angle

Shaft Runout : 0.025mm

End play : 0.025mm at4000g

Radial play : 0.025mm at 460g

Max.Axial force : 15N

Max.radial force : 75N at 10mm from the flange

Dielectric strength : 500VDC for one minute

Insulation class : B

Insulation resistance : 100MΩMin,500VDC

Contact Now

NEM23 brushless dc motor,NEMA23 bldc motor,57mm bldc motor with HAll sensor

OWM57BLSH   SERIES


INDICATIONS OF THE MODELS

NEM23 brushless dc motor,NEMA23 bldc motor,57mm bldc motor with HAll sensor

OWM  57  BLS   H   01
 OWM: OWO Motor
     57:     MotorFrame Size
       BLS:           Brushless square DC motor
           H:                     High torque
            01:                               Series number

 GENERAL  SPECIFICATIONS



Winding type
Delta
Hall effect angle
120 degree electrical angle
Shaft run out
0.025mm
Radial play
0.025mm@460g
End play
0.025mm@4000g
Max. radial force
75N @ 20mm from the flange
Max. axial force
15N
Insulation class
Class B
Dielectric strength
500VDC for one minute
Insulation resistance
100MΩMin., 500VDC



ELECTRICAL SPECIFICATIONS



Model   OWM57BLSH01

Number of poles
4
Number of phase
3
Rated voltage          VDC
24
Rated speed            RPM
2300
Rated torque           N.m
0.24
Rated power            W
58
Peak torque            N.m
0.55
Peak current           A
11.5
Line to line resistance    ohms
1.5
Line to line inductance   mH
1.8

Torque constant         Nm/A
0.05
Back E.M.F            V/KRPM
5.2
Rotor inertia            g.cm2
200
Body length(L)          mm
52
Mass                   Kg
0.65
